机架式工业计算机

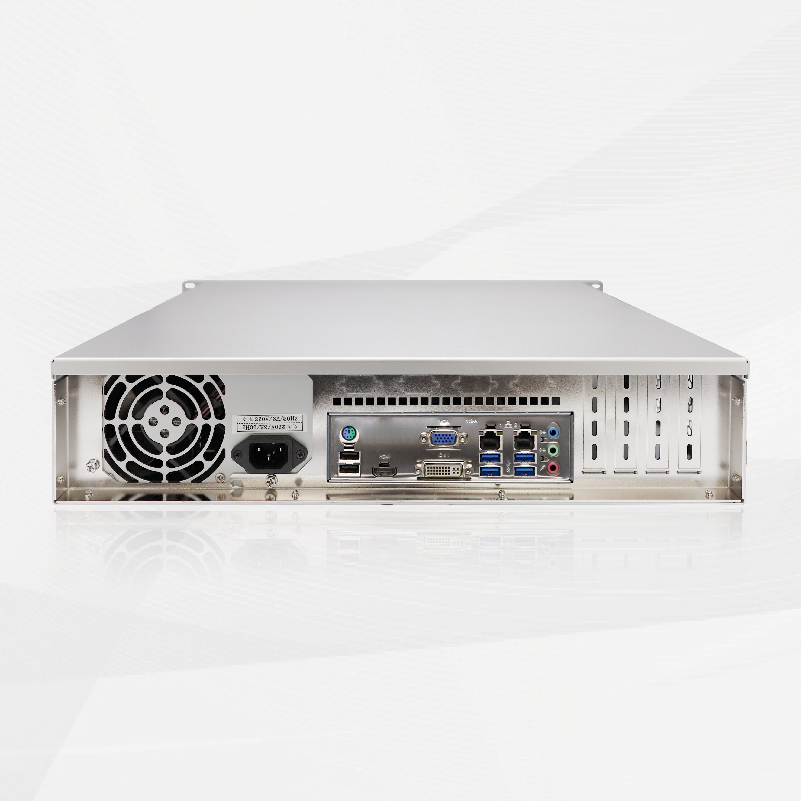

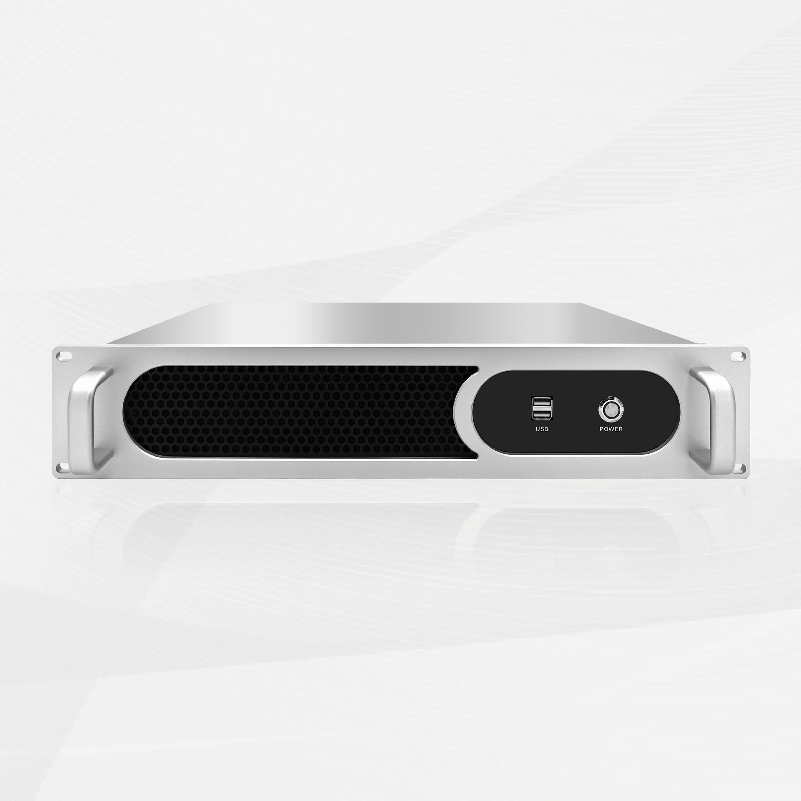

2U工控机【酷睿6/7代】

支持LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, 支持Pentium® or Celeron® processor

Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered ,Max64GB

1 x VGA :up to 1920x1200@60Hz,1 x DVI-D :up to 1920x1200@60Hz ,
1 x HDMI :2.0 (up to 4096x2160@60Hz),
1 x iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

6 x SATA :6Gb/s (RAID 0/1/5/10 supported)

2 x PCIe x8    3 x PCIe x4    2 x PCI Slot
1 x PCIe mini Card Slot :Full-size slot (support mSATA)



  • 产品参数
  • 应用场景
  • 下载中心

配置信息

处理器支持LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3,
支持Pentium® or Celeron® processor
芯片组Intel® Q170
内存Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered ,Max64GB
显示接口1 × VGA :up to 1920 × 1200@60Hz,
1 × DVI-D :up to 1920 × 1200@60Hz ,
1 × HDMI :2.0 (up to 4096 × 2160@60Hz),
1 × iDP :interface for HDMI, LVDS, VGA, DVI, DP (up to 3840 × 2160@60Hz)
音频Description: Realtek ALC662 HD codec supports 5.1-channel;
1 × Line in :on rear IO;1 × Line out :on rear IO;
1 × Mic :on rear IO;1 × Front Audio :2x5 pin
网络2 × LAN :LAN1: Intel® I219LM with Intel® AMT 11.0 support
LAN2: Intel® I210AT PCIe controller with NCSI support
存储器6 × SATA :6Gb/s (RAID 0/1/5/10 supported)
I/O接口4 × Internal RS-232 :2x5 pin, P=2.54
2 × Internal RS-232/422/485 :2 × 5 pin, p=2.54
2 × External USB 2.0
4 × External USB 3.2 Gen1 × 1
4 × Internal USB 2.0 :2 × 4 pin, P=2.0
2 × Internal USB 3.2 Gen1 × 1 :2 × 10 pin, p=2.0
1 × PS/2 :1 × 6 pin
1 × DIO :8-bit digital I/O (2 × 5 pin)
1 × LPT :2 × 13 pin, p=2.54
扩展总线2 × PCIe x8      3 × PCIe x4      2 × PCI Slot
1 × PCIe mini Card Slot :Full-size slot (support mSATA)
工作温度-20℃~60℃
储存环境-30℃~70℃
其它功能iRIS 1 × iRIS-2400 slot; TPM 2 × 10 pin
电源3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSB@3.4A
(Intel® Core™ i7 6700K 4.0GHz CPU with 32 GB (four 4 GB) 2133 MHz DDR4 memory)
support AT/ATX mode
尺寸(L × W)305mm × 244mm
